Radiowaves

A fascinating and invisible world around us

What is RF and RadioWaves

Electromagnetic Radiation and Radio Waves

• Electromagnetic Radiation: Waves of electromagnetic fields propagating through space
  • Synchronized oscillations of electric and magnetic fields
  • Propagating at the speed of light (c) in a vacuum

• We apply this current at an antenna

Electromagnetic Radiation and Radio Waves

• Theorized by James Clark Maxwell in 1865
  • Maxwell's equations
• Demonstrated in 1887 by Heinrich Hertz
• First practical application in 1894 by Guglielmo Marconi

Electromagnetic Radiation and Radio Waves

• Frequency, measured in Hertz (Hz)

• Wavelength, measured in meters

λ = υ/f

• As the frequency increases, the wavelength decreases

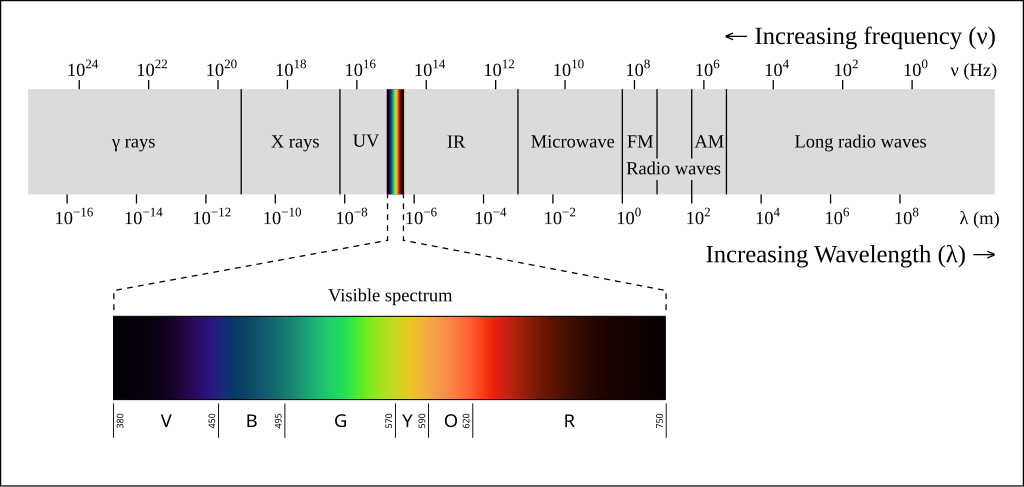

Electromagnetic and Radio Spectrum

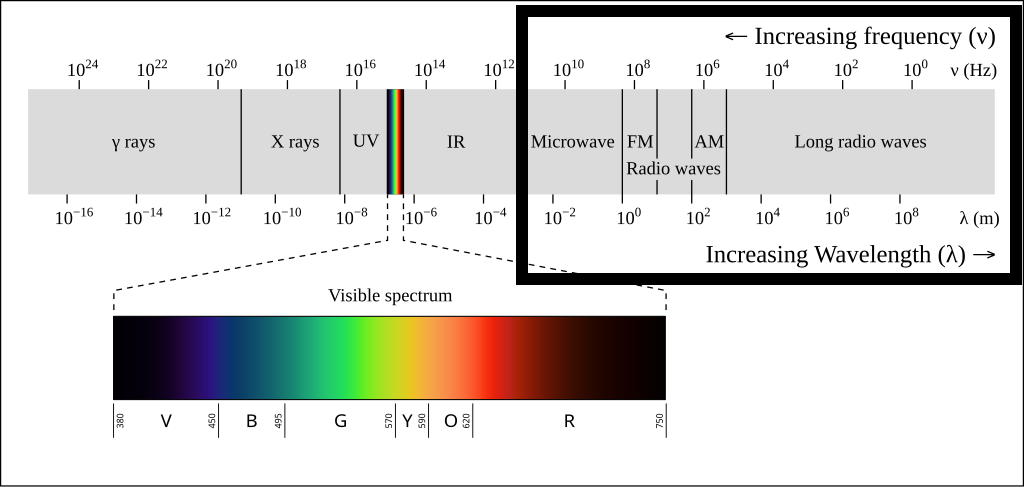

Electromagnetic and Radio Spectrum

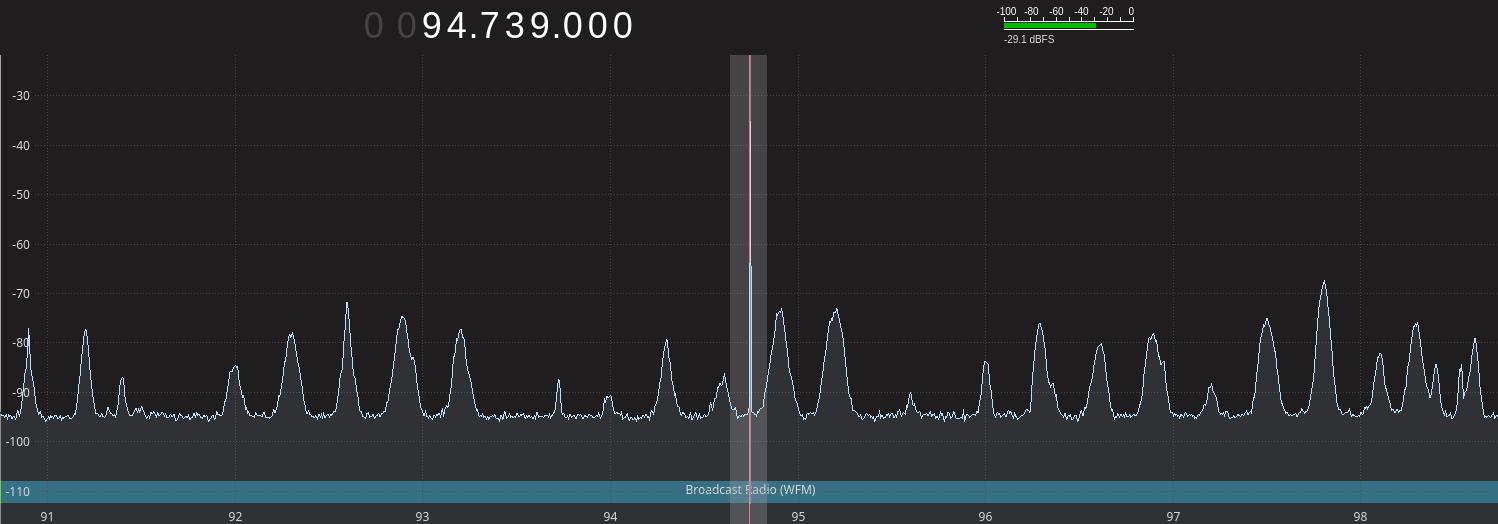

Noise floor

• Cosmic background radiation, noise from electronics, thermal radiation, etc

The spectrum is a "Finite Resource"

• ITU established in 1865, became part of United Nations in 1947

• Publishes the ITU Radio Regulations
  • It's an International Law that countries follow and enforce
  • Regulates the 9 kHz to 300GHz spectrum

• ΕΕΤΤ in Greece, RATEL in Serbia, FCC in USA, etc

Legality of radio equipment

• Varies wildly by country
• Consult your local laws

• Very blurry situation nowadays since the laws haven't kept up with technology

How does one transmit then?

• You pay for the right to transmit (TV Stations, Mobile Carriers, etc)

• You get licensed as a Radio Amateur operator in your country

• Your line of work or other reasons allow you to (Firefighters, boats, etc)

• You transmit in a part of the spectrum that's free for everyone to use (under conditions)

ISM Bands

• Introduced during the 1940s because of microwave heating

• Reserved for Industrial, Scientific, Medical purposes only, no telecommunications allowed

• However, most electronic devices use these bands nowdays
• NFC, WiFi, BT, ZigBee, LoRa, 433/868 keyfobs, etc

Antennas

• Antennas come in all shapes and sizes

• Size depends on the frequency (wavelength) of signal

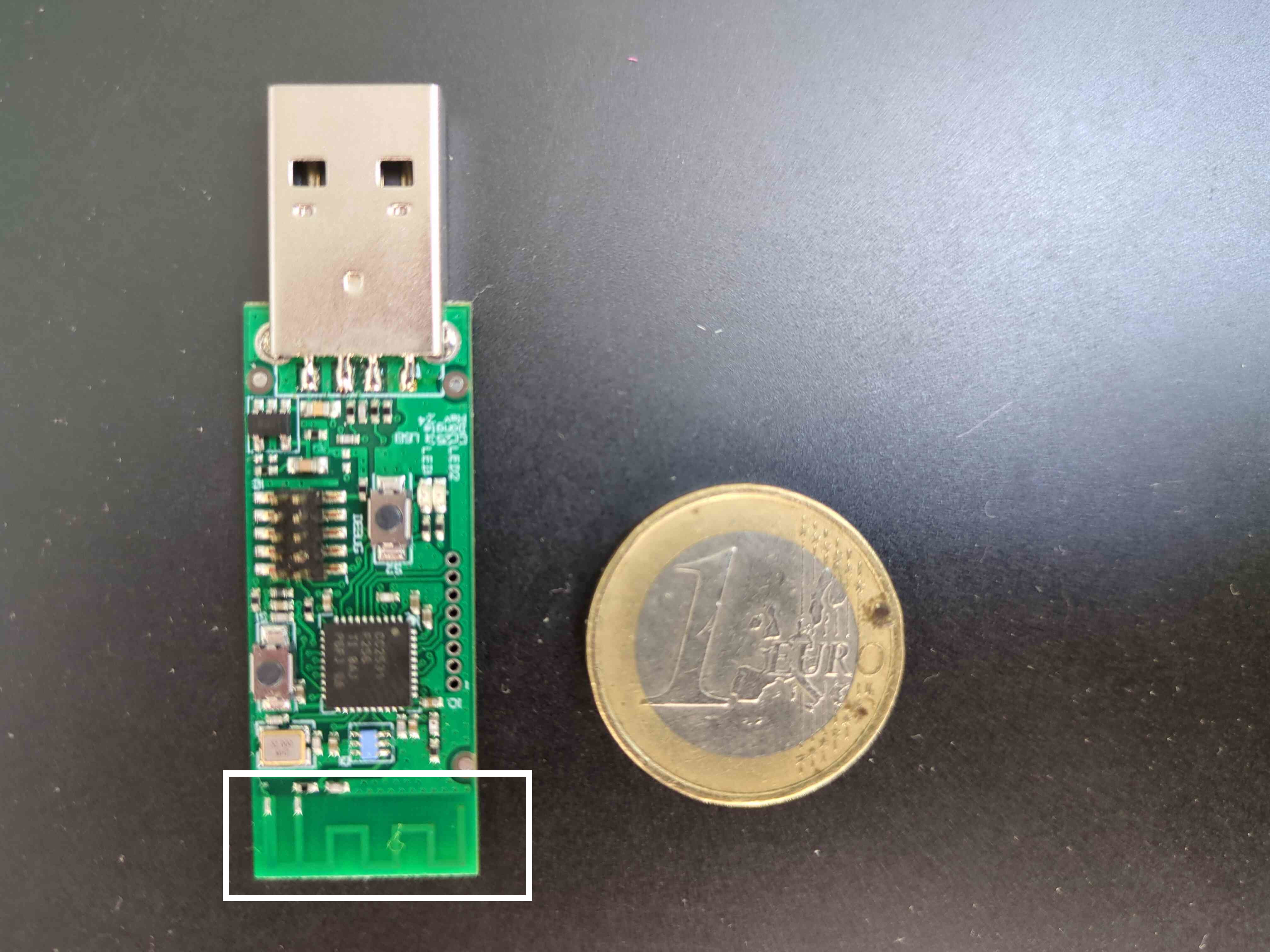

  • Bluetooth, WiFi, etc, 2.4GHz -> 12.5cm
  • Analog FM broadcasting, 87-108MHz -> 3m
  • Submarine, 76Hz -> ~4.000km

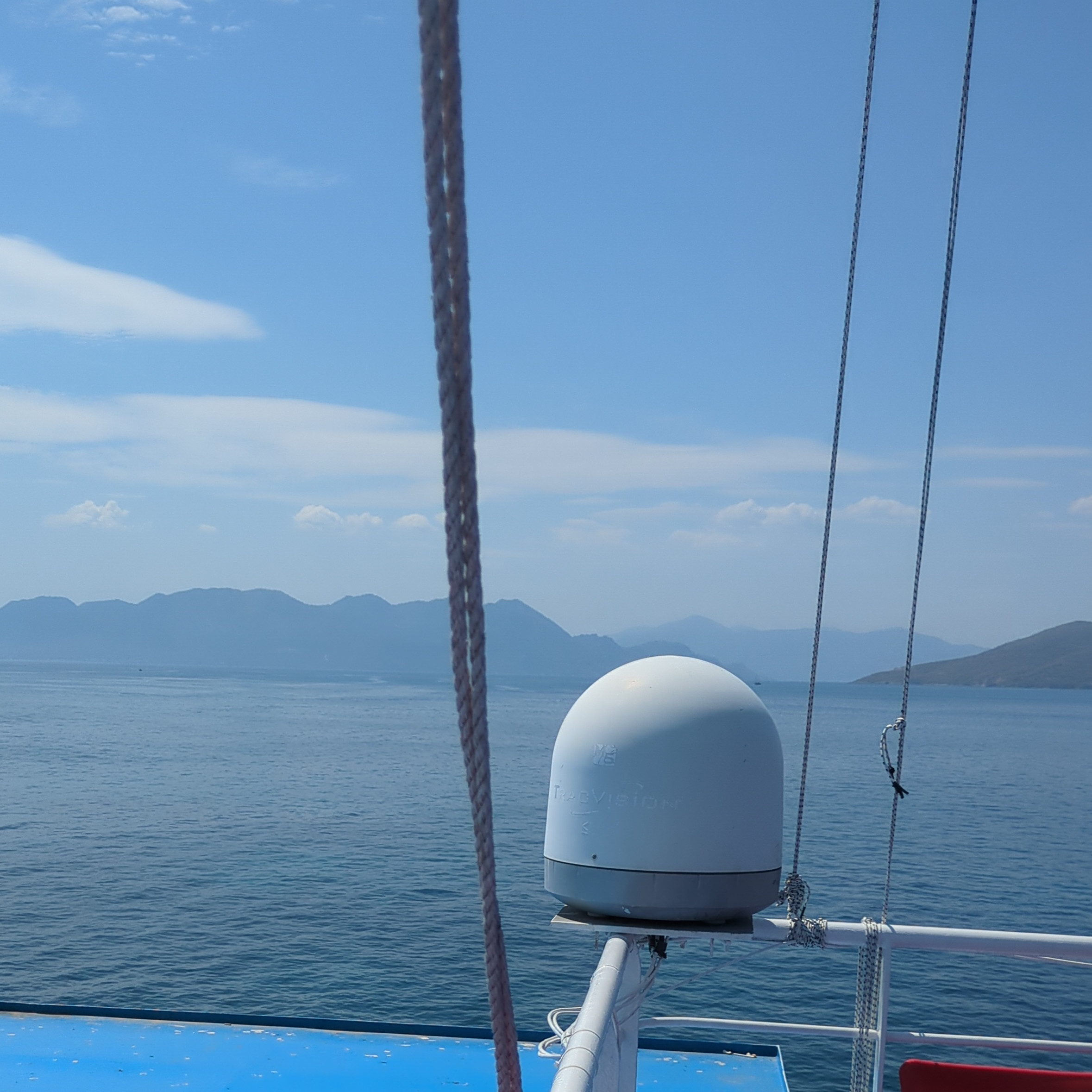

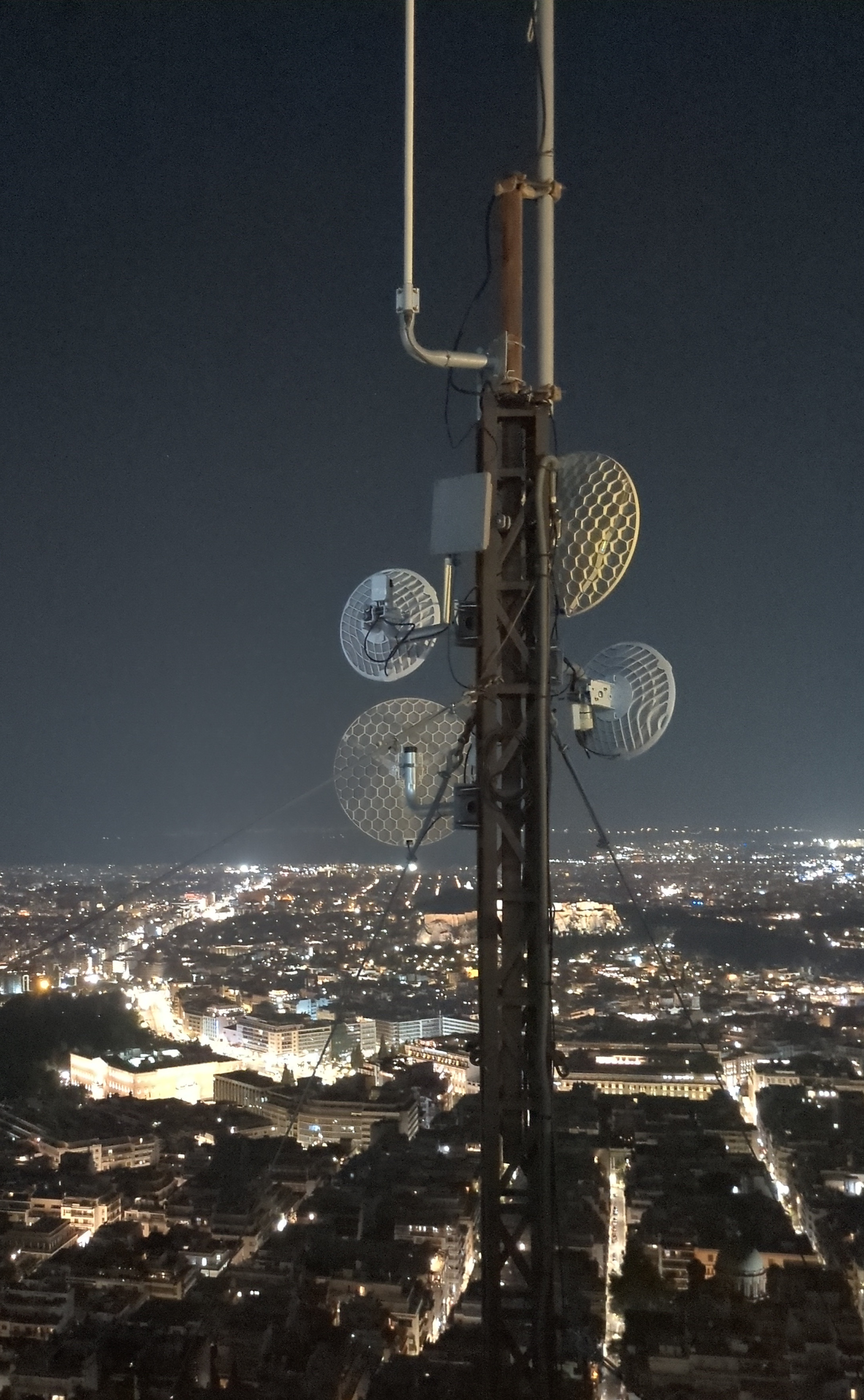

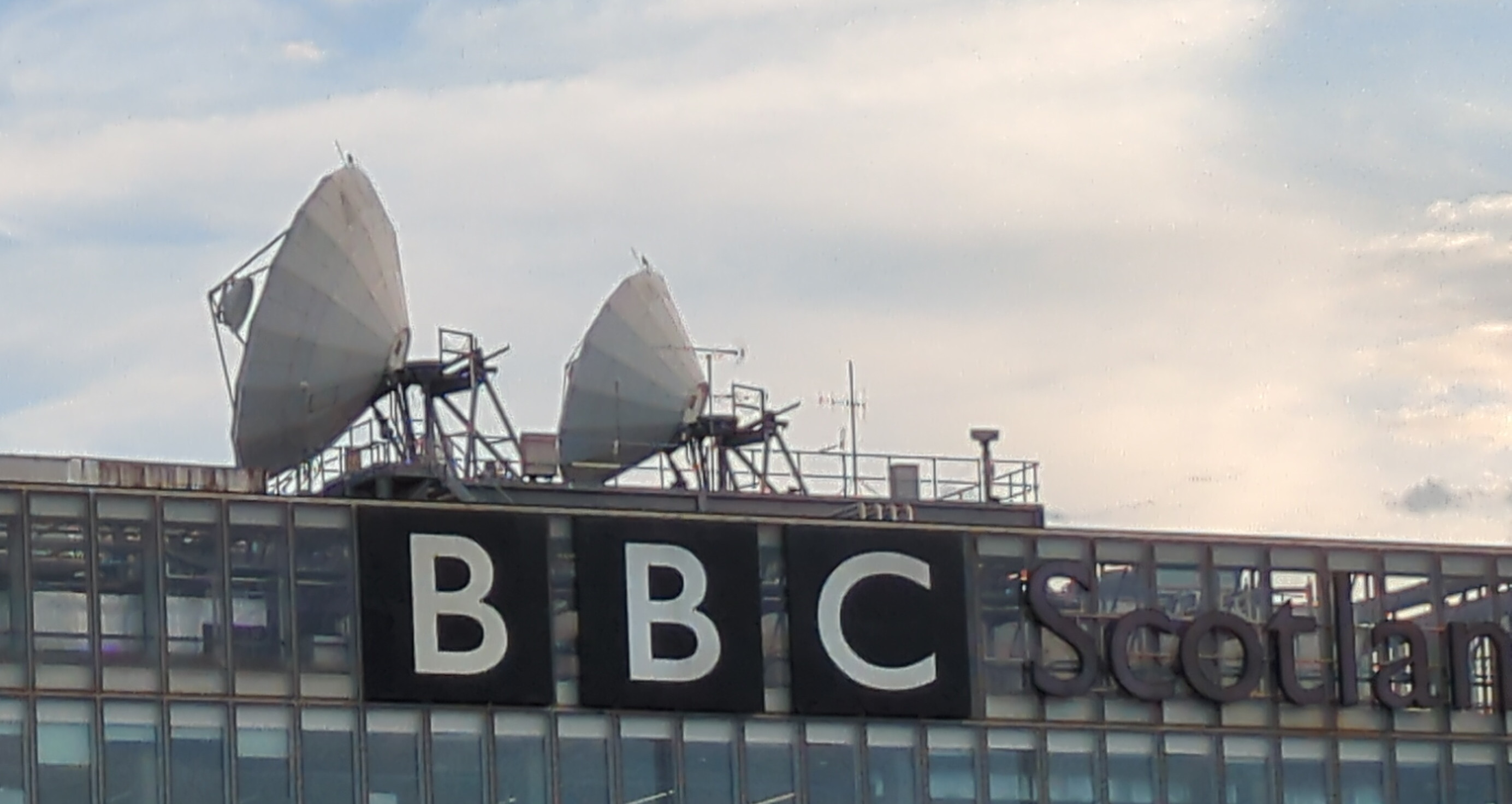

Antennas

Antennas

Antennas

Antennas

Antennas

Antennas

Antennas

Exploring and capturing this world

• Radiowaves are the definition of untrusted input!

• Lots of radio related software is not written in memory safe languages or with security in mind

Hardware

• Hardware that's built to receive/transmit signals of specific frequencies and modulations
  • Usually locked down, communicate with it via a higher level interface

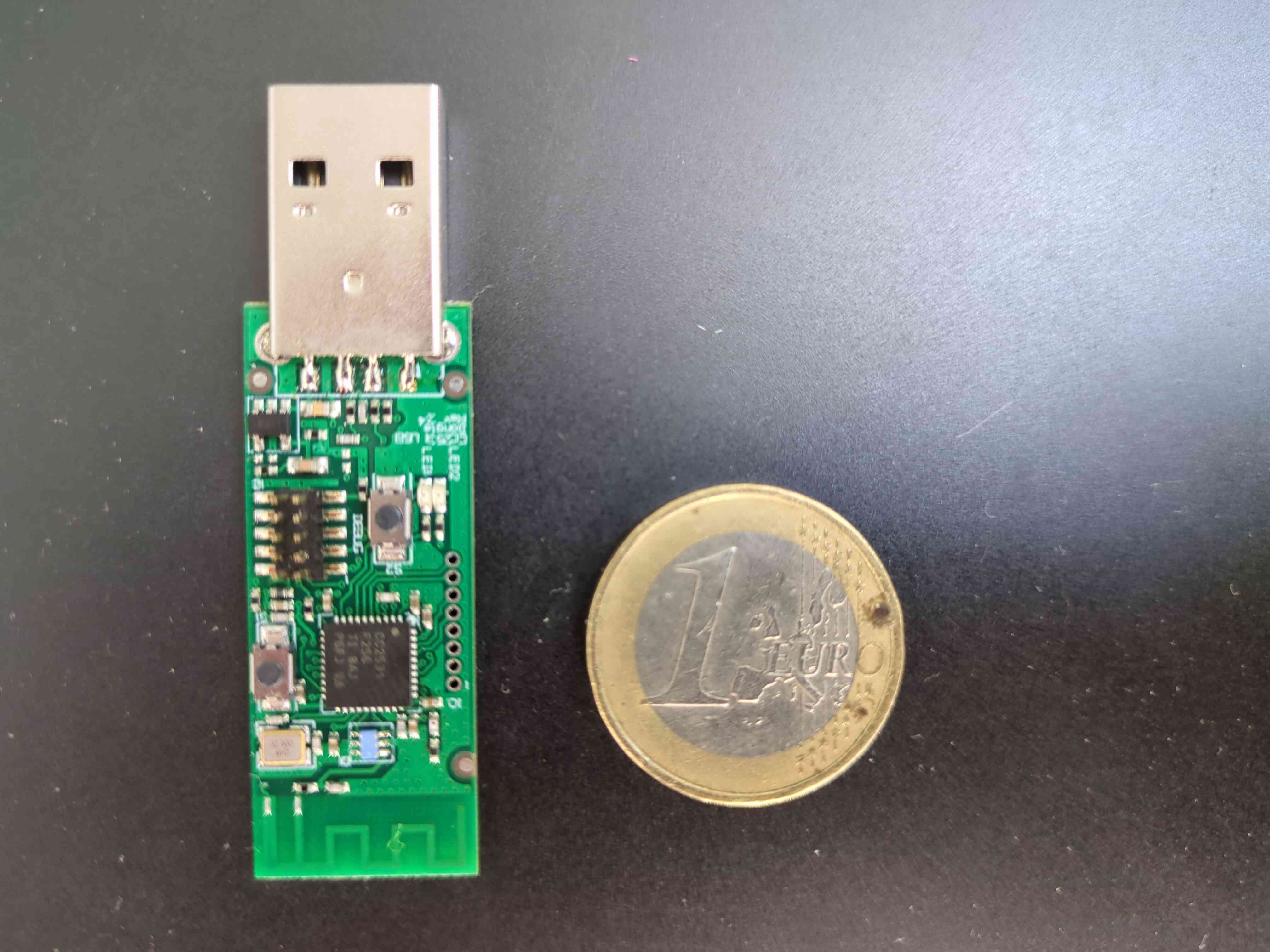

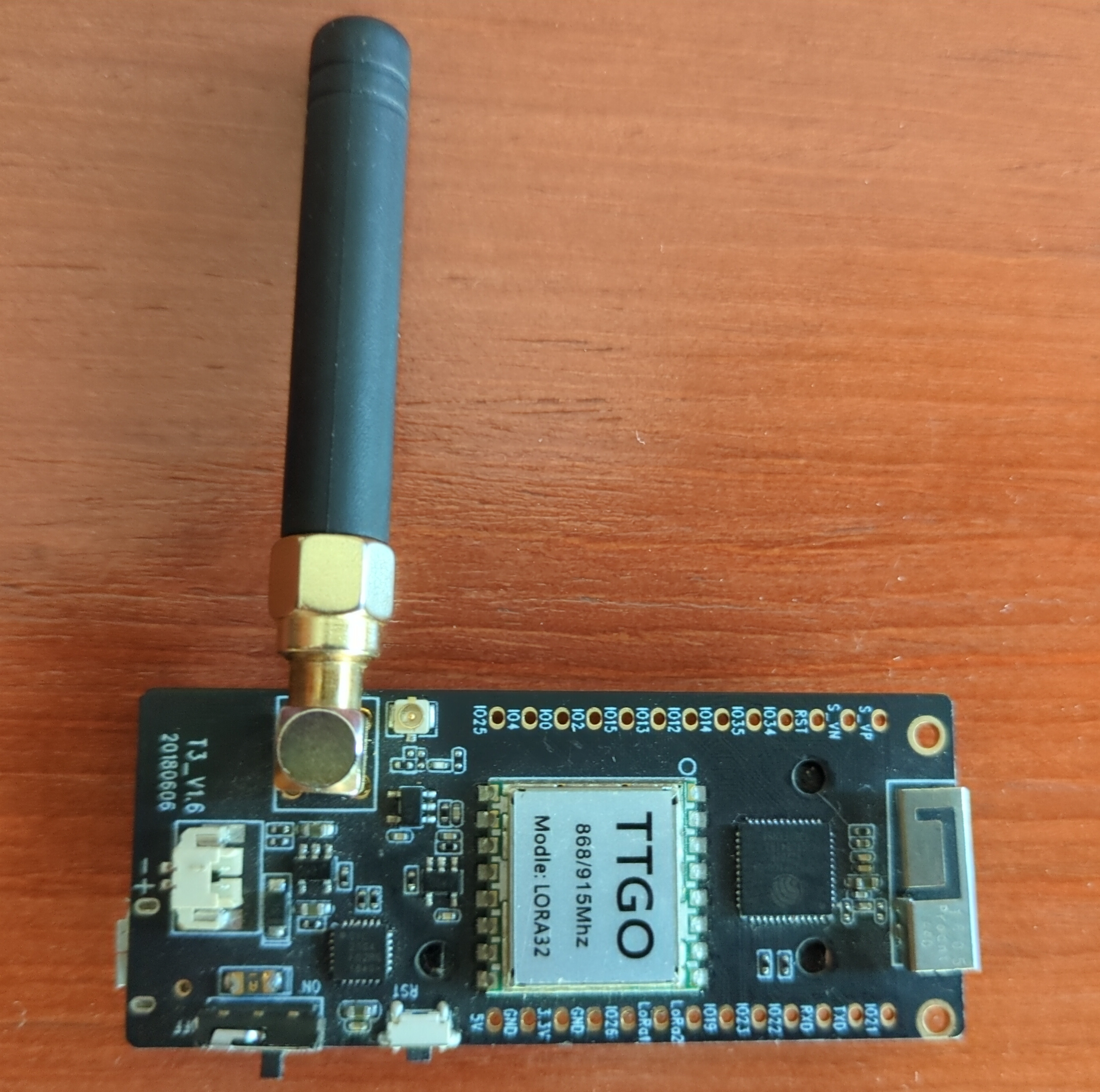

  • Bluetooth, WiFi, ZigBee, LoRa, CC1110, CC2531, etc

Hardware

Software Defined Radio

• The hardware is now "dumb" and only captures the analog signal of the carrier, digitizes it and passes it to software on the computer.

• The computer then does all the "smart" and computational heavy processes, like demodulation, decoding, etc.

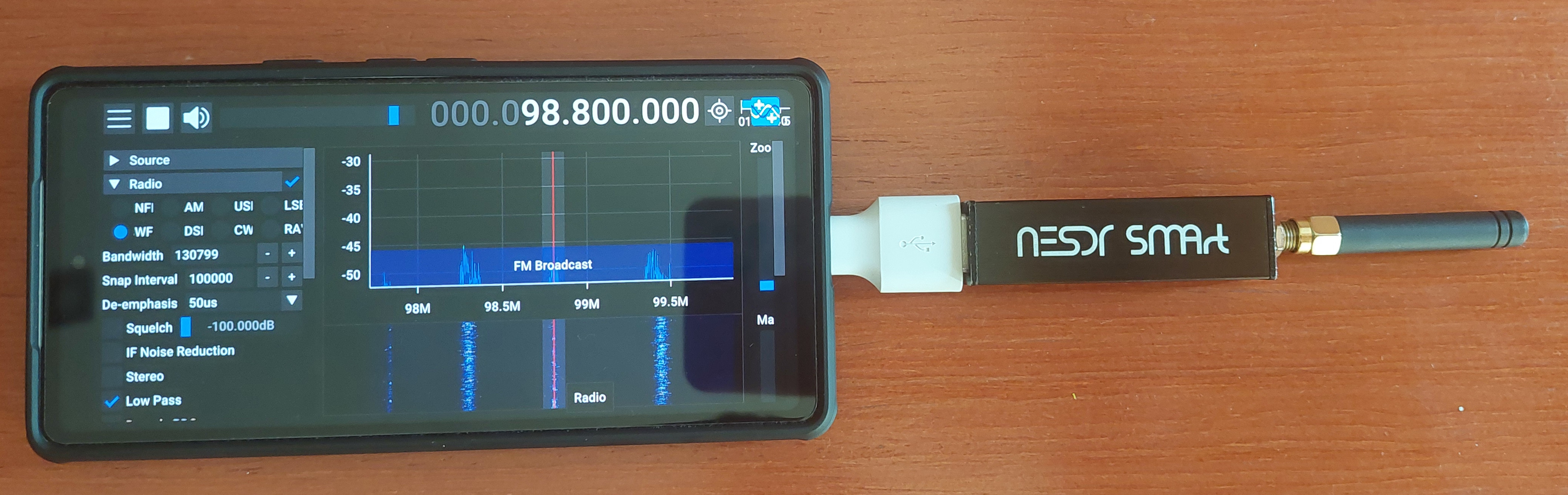

• Works on smartphones…

A revolution in cost and accessibility

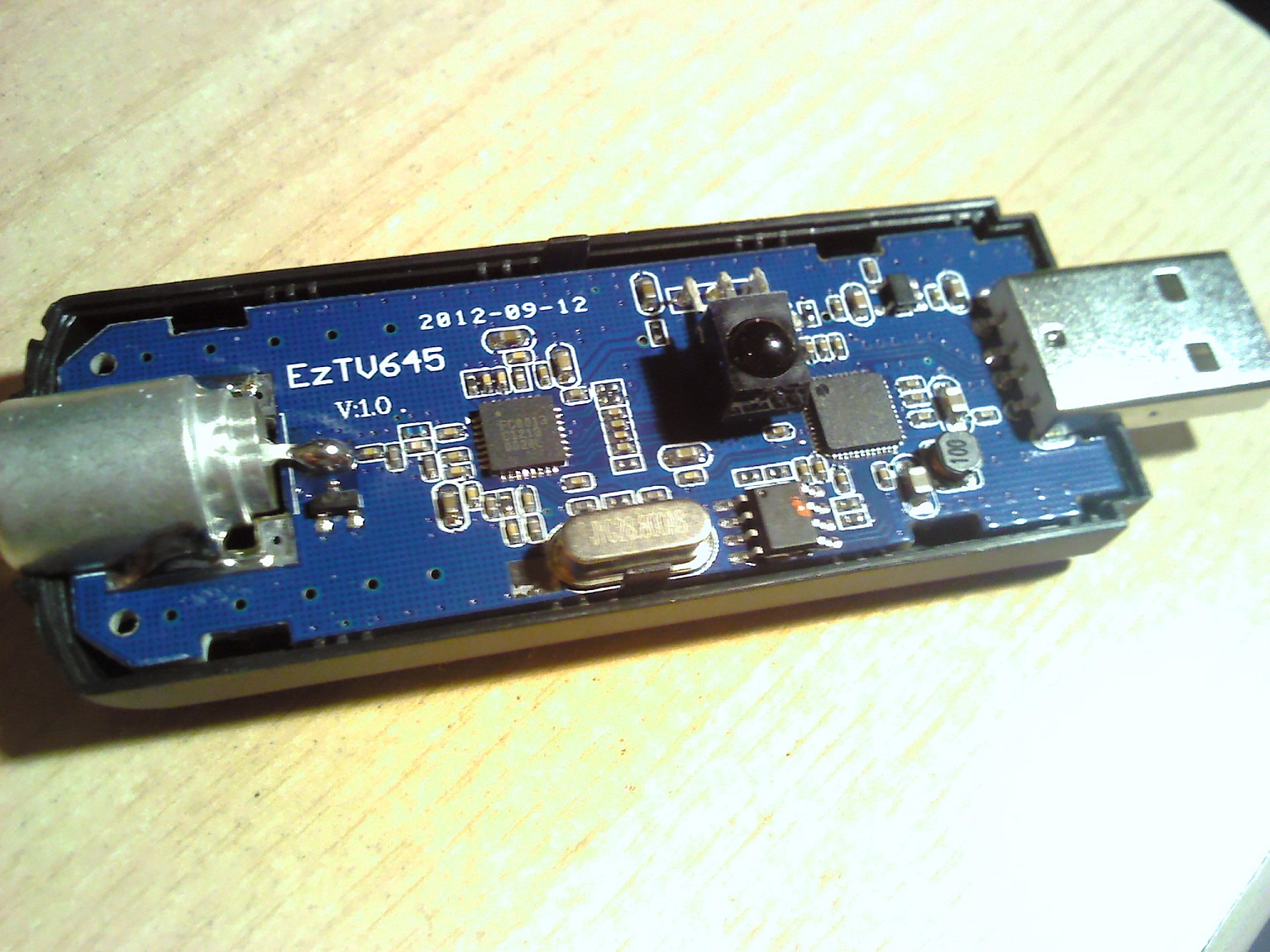

• RTL-SDR, a driver for a cheap (20-30$) USB digital TV receiver

Software

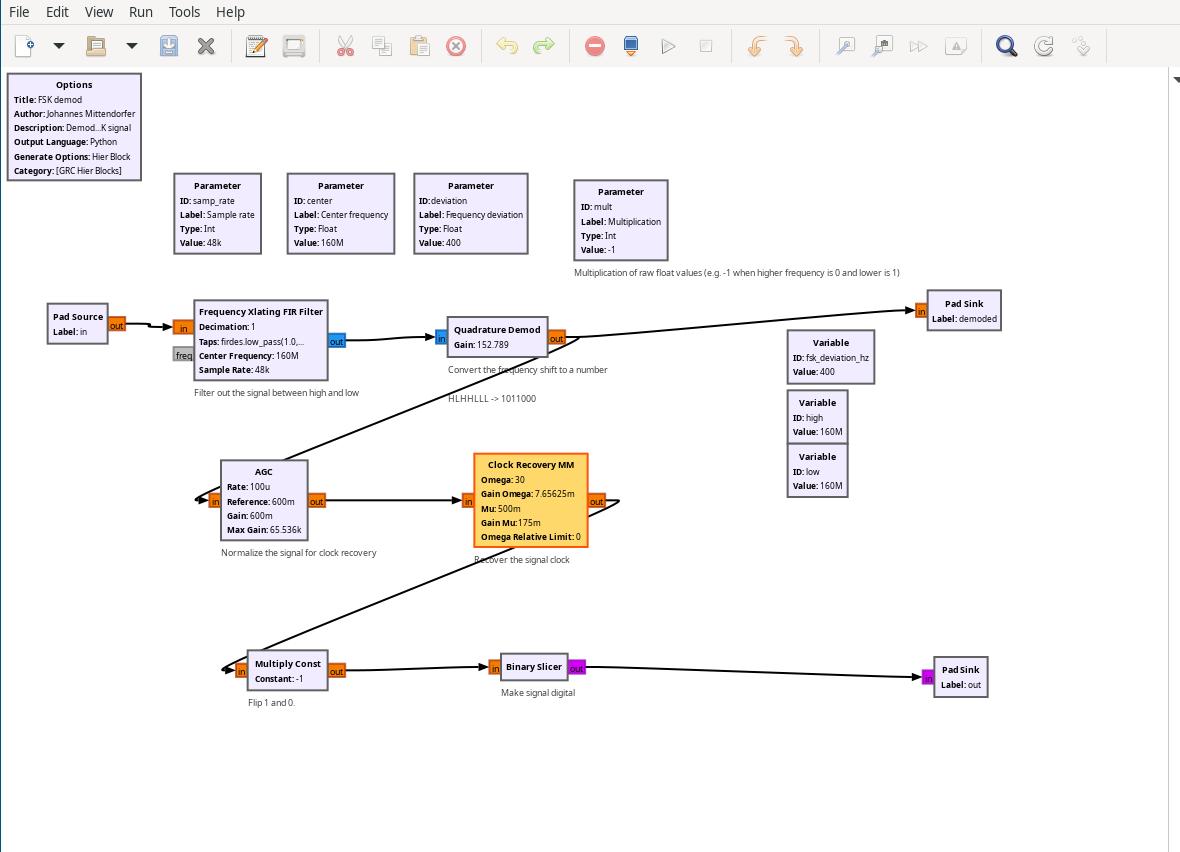

• GNU Radio is the golden standard, but requires lots of know-how

Software

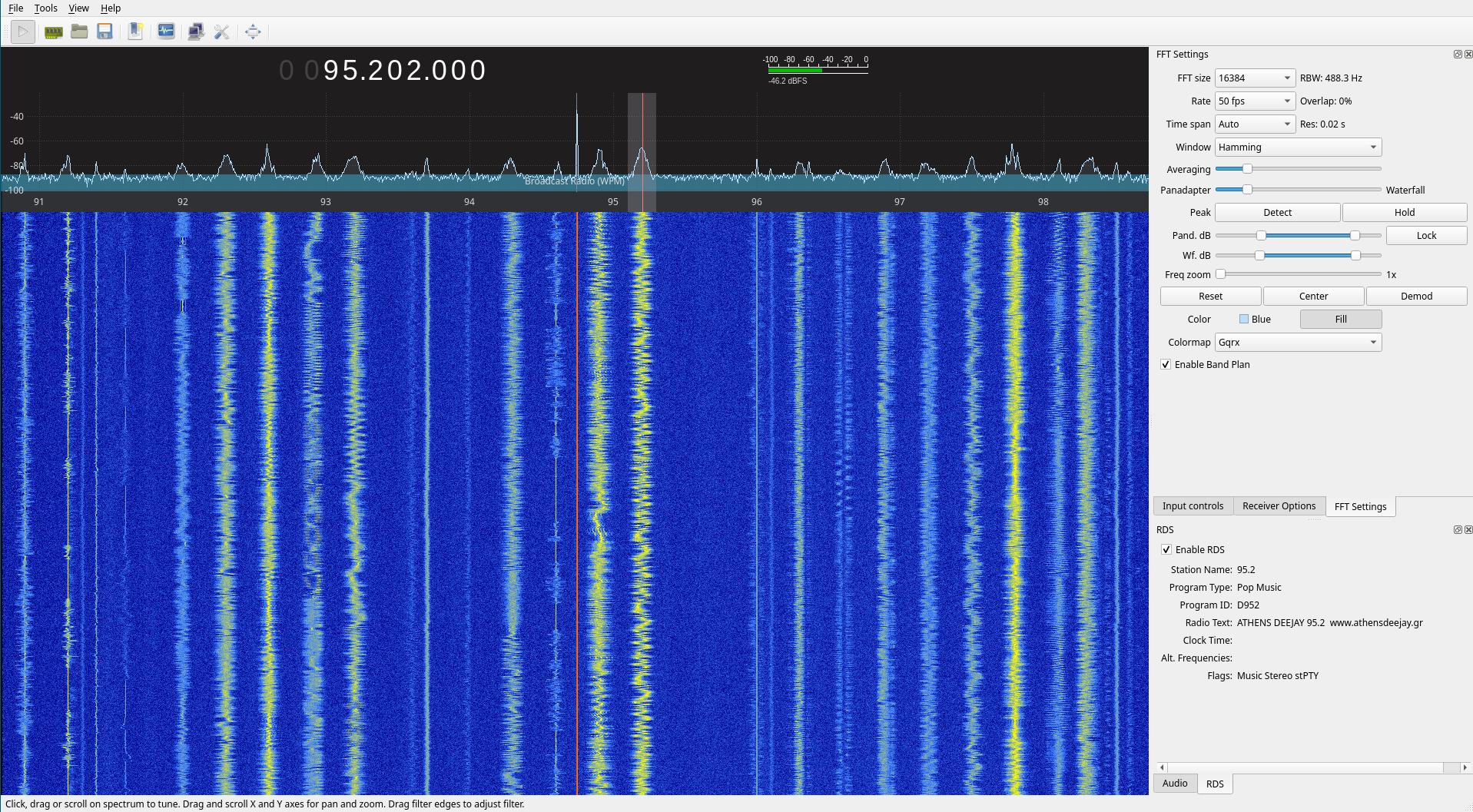

• gqrx, CubicSDR, etc

Software

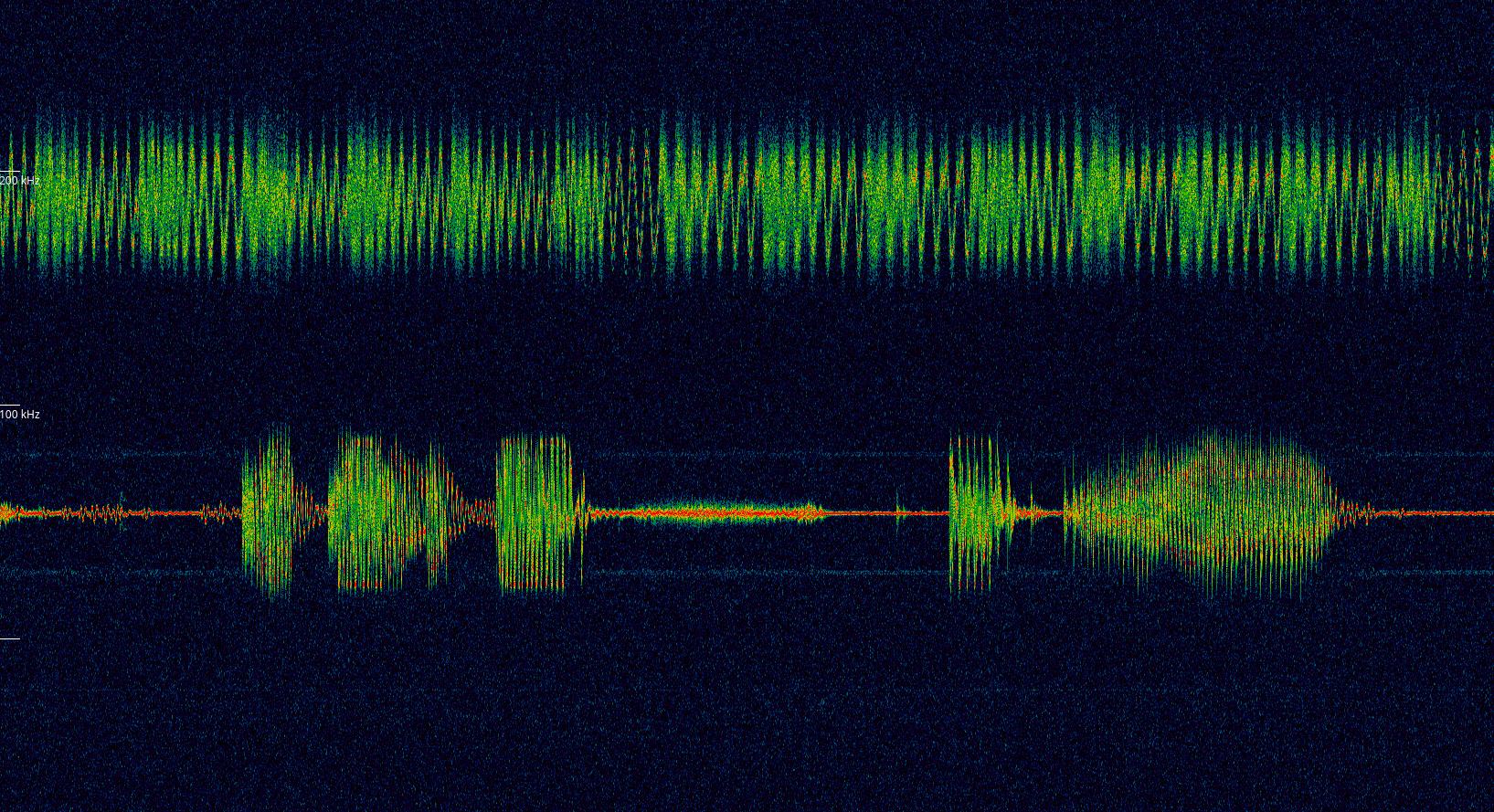

• Inspectrum and Universal Radio Hacker for inspecting and reverse engineering signals
• rtl_433 for decoding a lot of cheap sensors/protocols (263 currently)

"Gamified"/handheld solutions

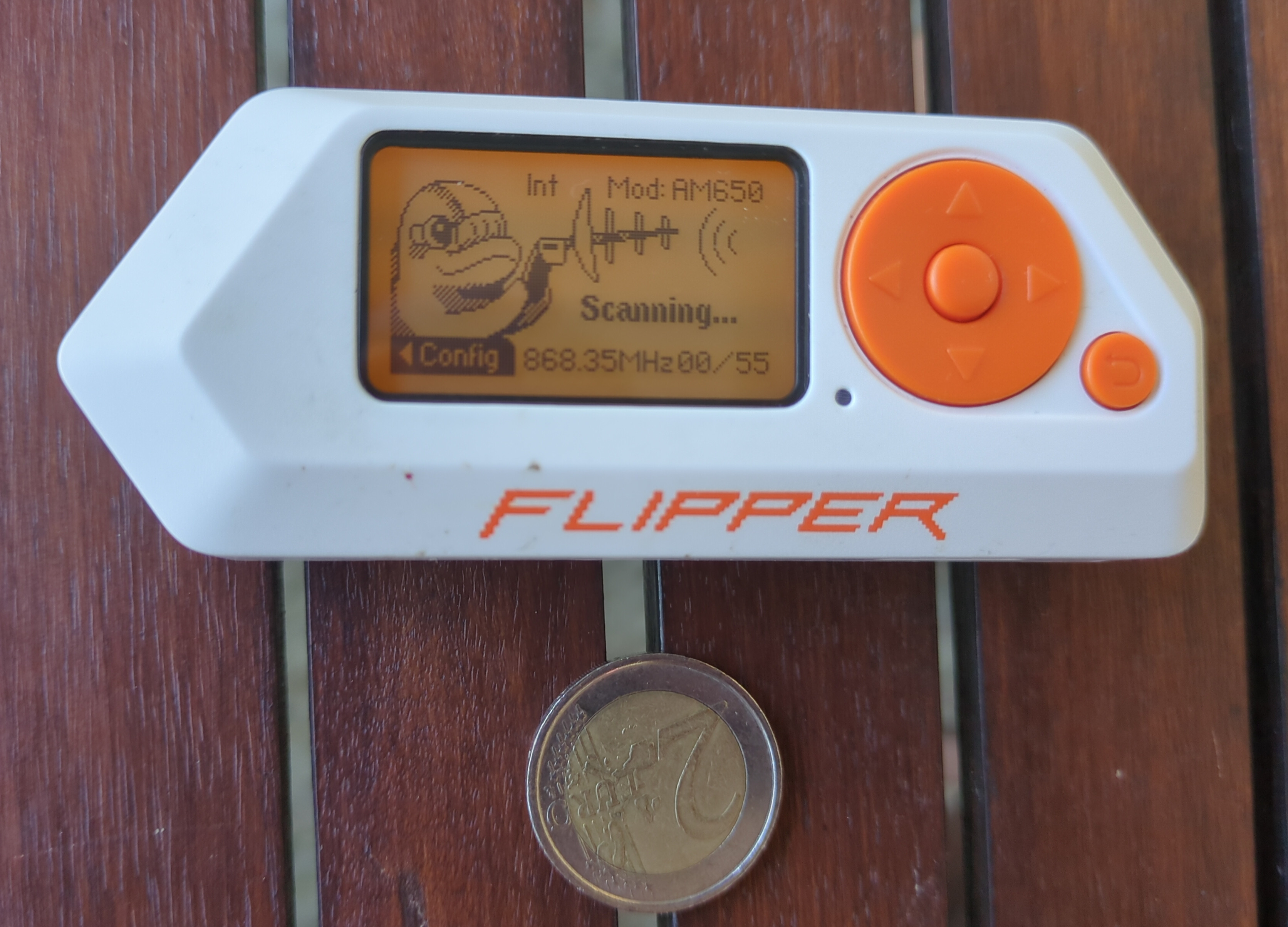

• Flipper Zero

"Gamified"/handheld solutions

• Smartphone works just fine

• HackRF with a portapack

Privacy

• Most electronic devices transmit some kind of signal (on purpose)

• TEMPEST is out of topic

• Transmitting == can be located

• Security, not privacy

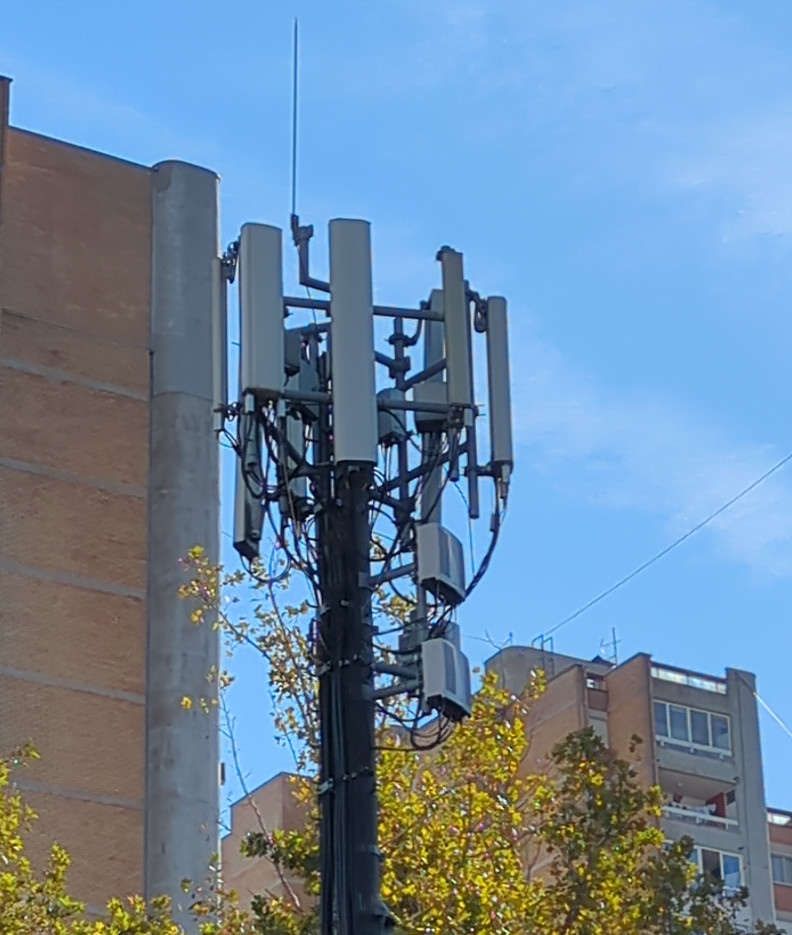

Cellular

• The elephant in the room

• Most of us carry a cellular device with us

• Not the easiest signal to capture

Bluetooth

• Classic Bluetooth in 1998, 4.0 (BLE) in 2011, 4.2 in late 2014, 5.0 in 2016

• Some privacy protections exist since 4.2, but devices fail to properly use them

Bluetooth devices

• Practically everywhere today

• Toothbrushes

WiFi

• Similar issues as Bluetooth BSSID uniquely identifies a device

• MAC Address randomization helps somewhat

• Wigle.net, Google and others are tracking Access Points.
  • Cameras often setup an AP

RFID

• RFID tags are used for access control, sharing information, anti-theft devices, athlete identification, etc.

• Three major versions, 125kHz, 13.56MHz, ~868/900MHz

• Easy to detect from a distance, hard to protect against.

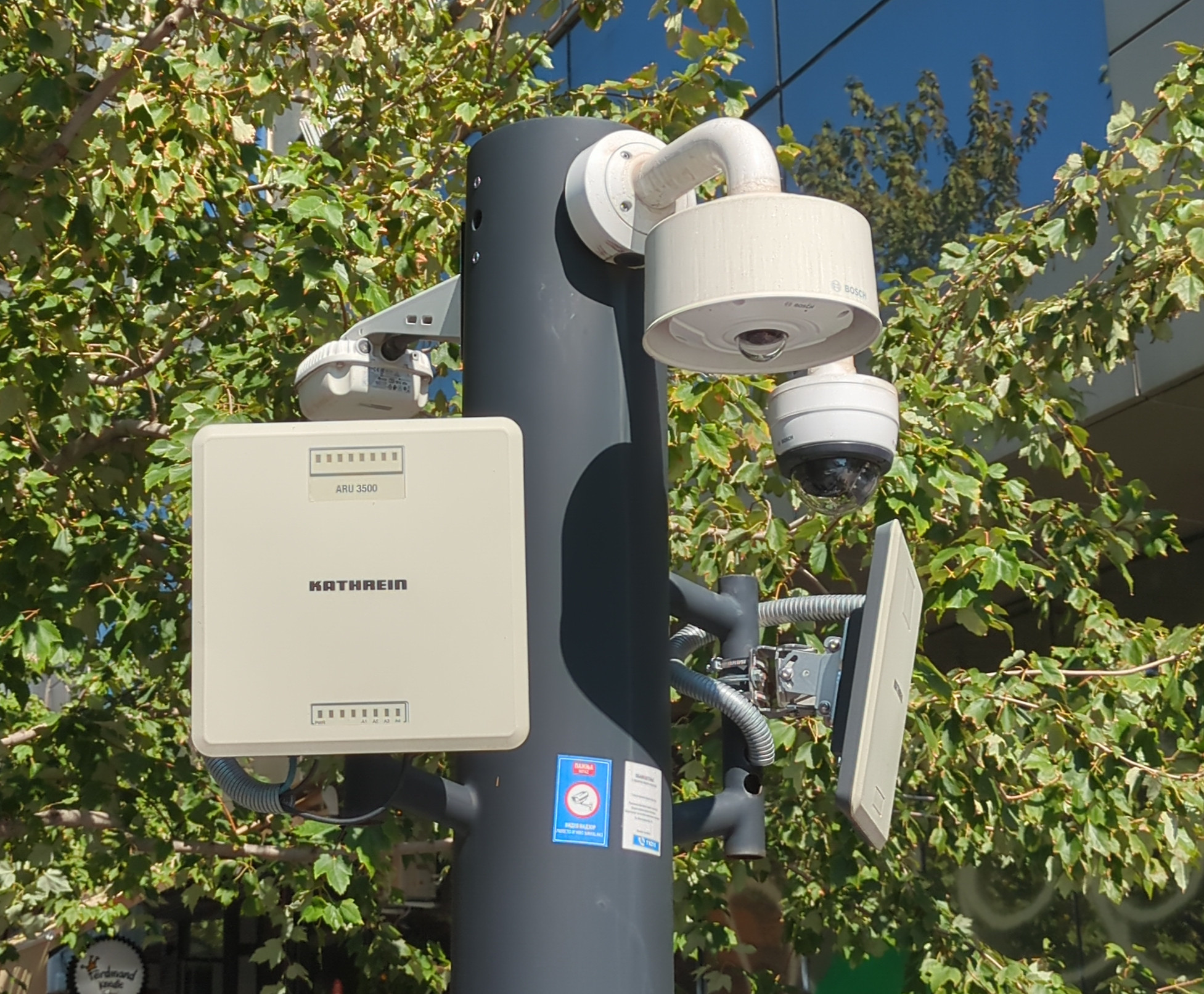

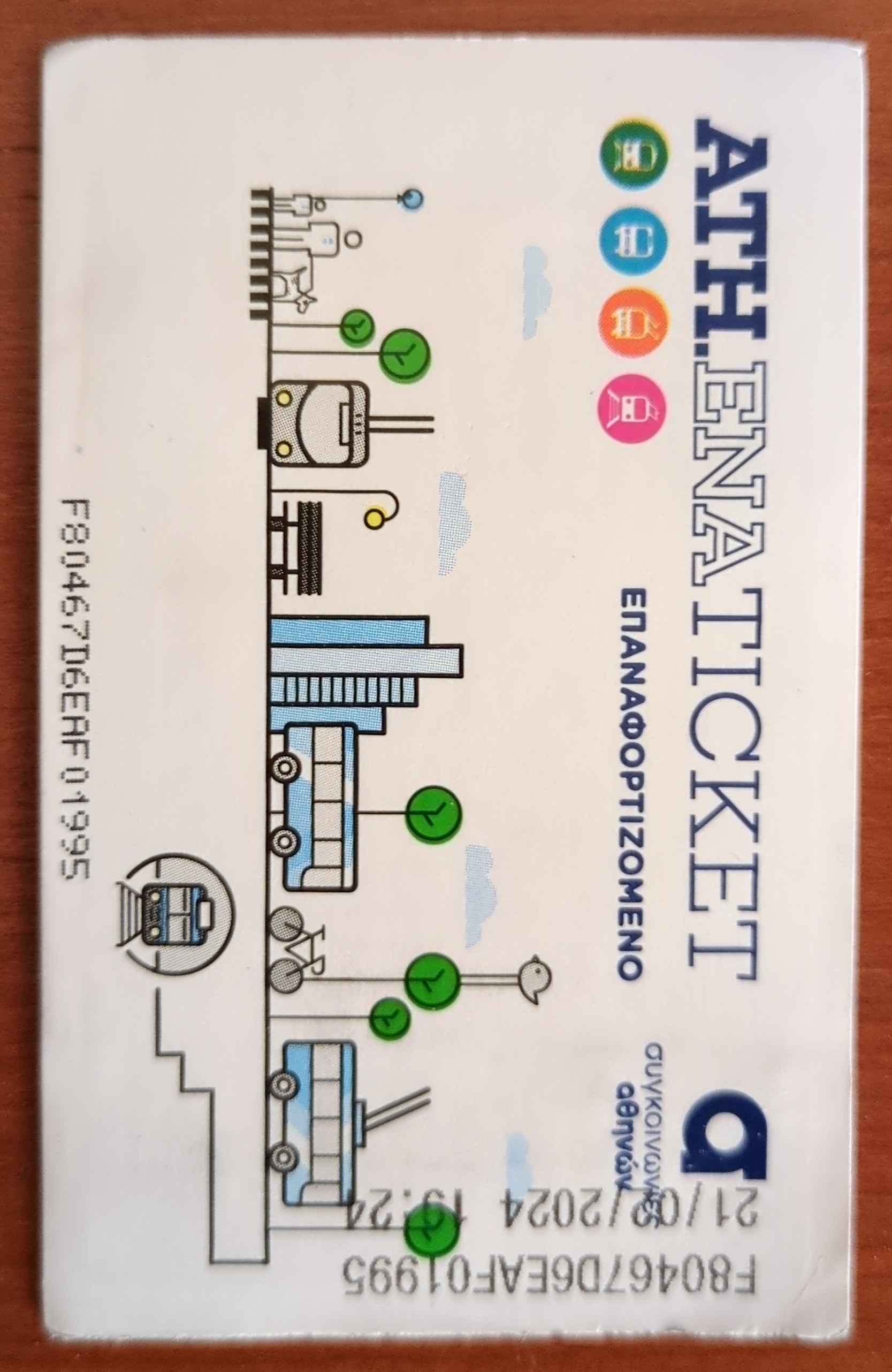

RFID

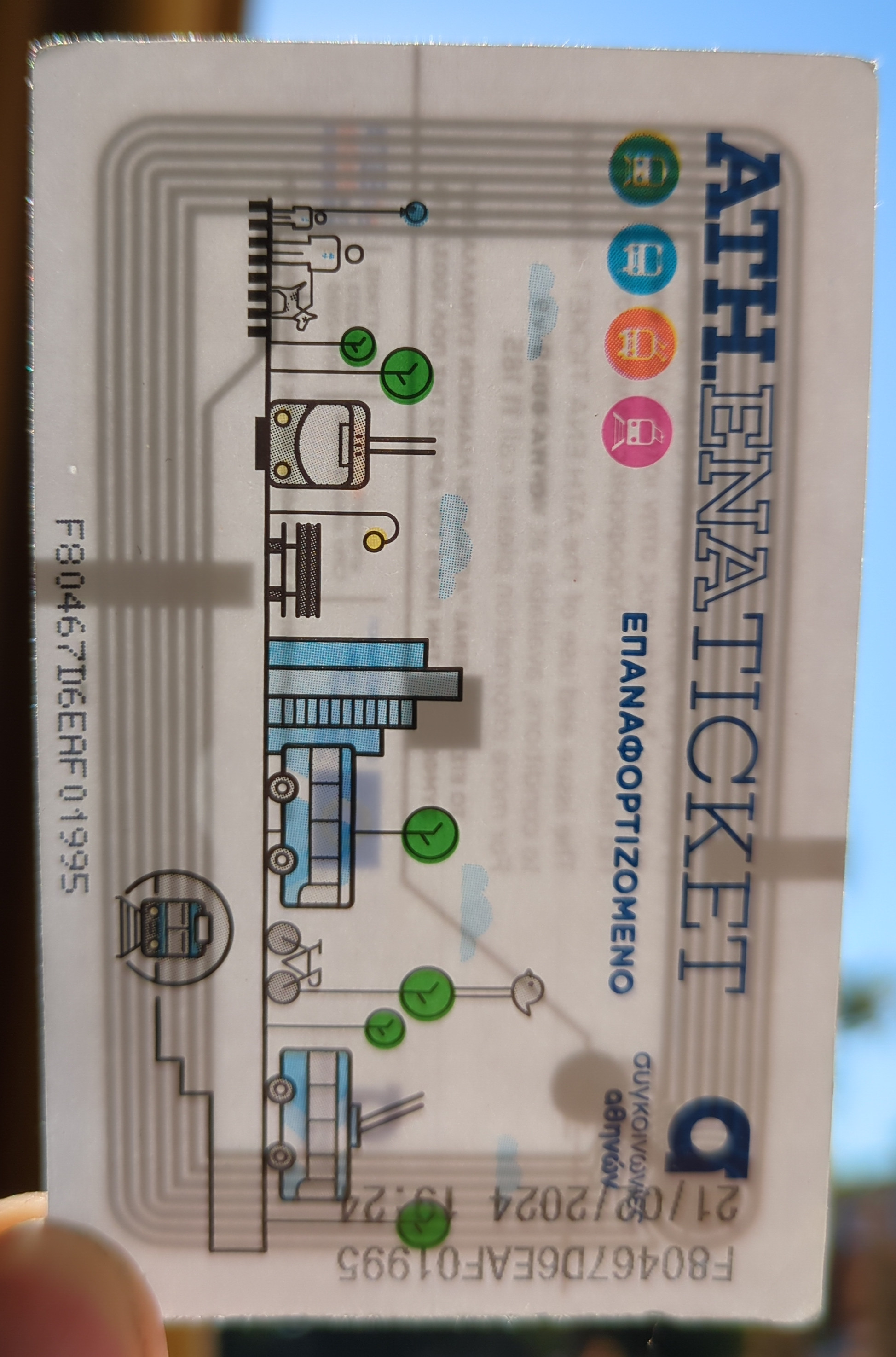

RFID

Drones

• RemoteID required by EASA & FAA since 1/1/2024

• WiFi and Bluetooth Long Range, can be received by smartphones

• SDR projects for decoding popular alternatives

Cars

• V2X, vehicle to everything

• Bluetooth (multiple devices)

• RFID for tollways/parking/access

• Cellular for safety and firmware updates

Cars - TPMS

• Tire Pressure Monitoring System

Cars - TPMS

{
  "time": "2024-09-17 06:16:32",
  "model": "Renault-0435R",
  "type": "TPMS",
  "id": "fafe00",
  "flags": "c0",
  "pressure_kPa": 249.333,
  "temperature_C": 36.000,
  "centrifugal_acc": 70.000,
  "mic": "CRC",
  "has_tick": 0,
  "tick": -128
}

Smart Home

• Multiple different protocols and approaches in interconnecting appliances

• ZigBee
  • Extremely popular for sensors and buttons

• 433/868/900MHz
  • Doorbells, temperature sensors, smart plugs, blinds

Smart Cities

Smart Power Meters

• Modern power meters are RF capable, part of the smart city

• WiFi, custom protocols, ZigBee, LoRa, mesh protocols

• Data granularity of readings is very important for privacy

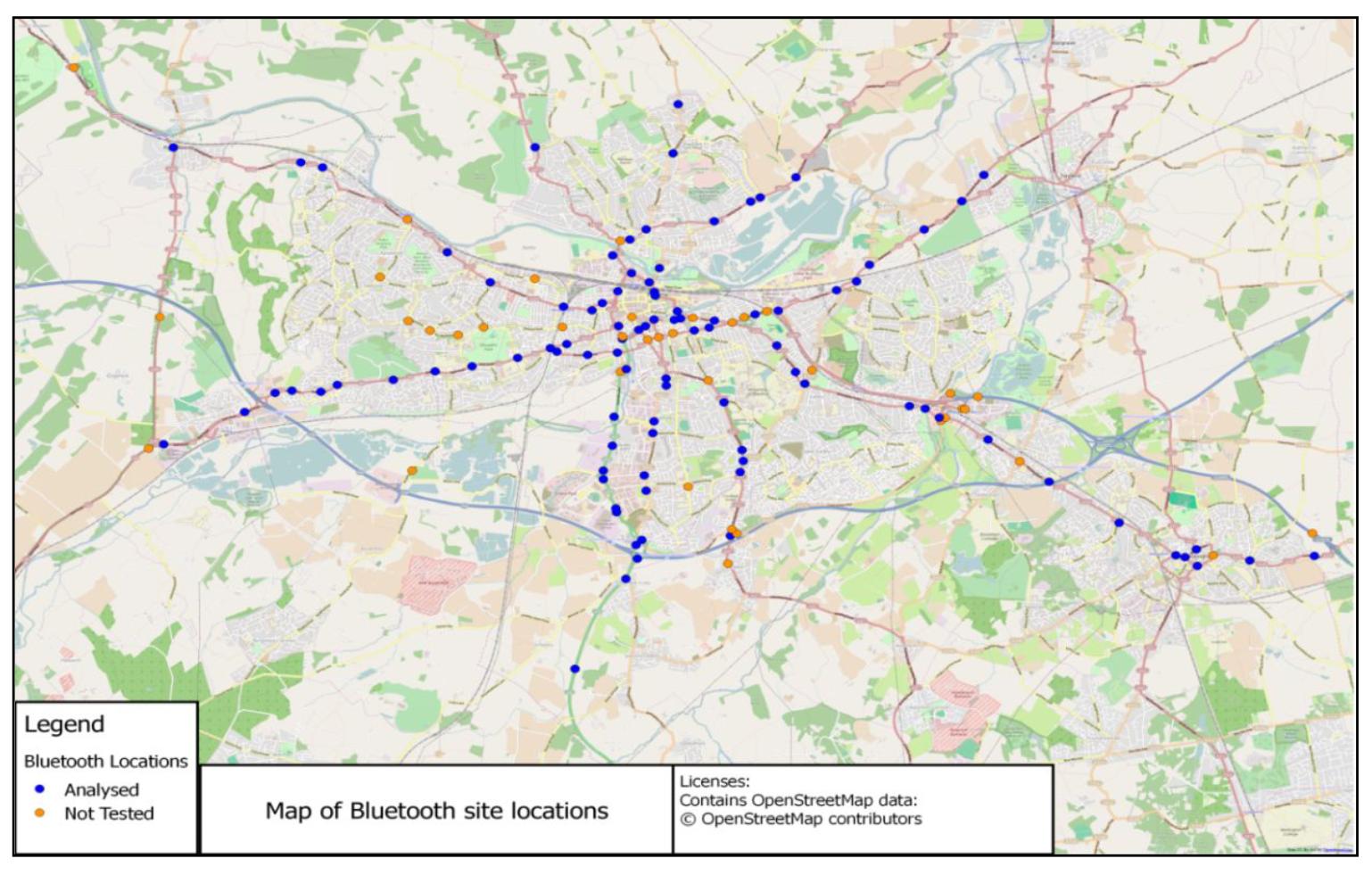

Cars and Pedestrians

• Tracked by the state for calculating road traffic and mobility of people

Users who have privacy concerns are also able to turn off
the Bluetooth discovery function of their device which
prevents it from being read by AWAM at all.

• Rich industry that seems very localized

Cars and Pedestrians

Conclusion

• This is not science fiction!
• Wireless technologies (RF) have permeated daily life and have increased technological complexity
• It's a battle of privacy vs convenience

Thank you - Questions?

• email: dgrig@erethon.com
• matrix: @dgrig:erethon.com

Bonus slides

• Information must be encoded in a carrier signal that is suitable for transmitting

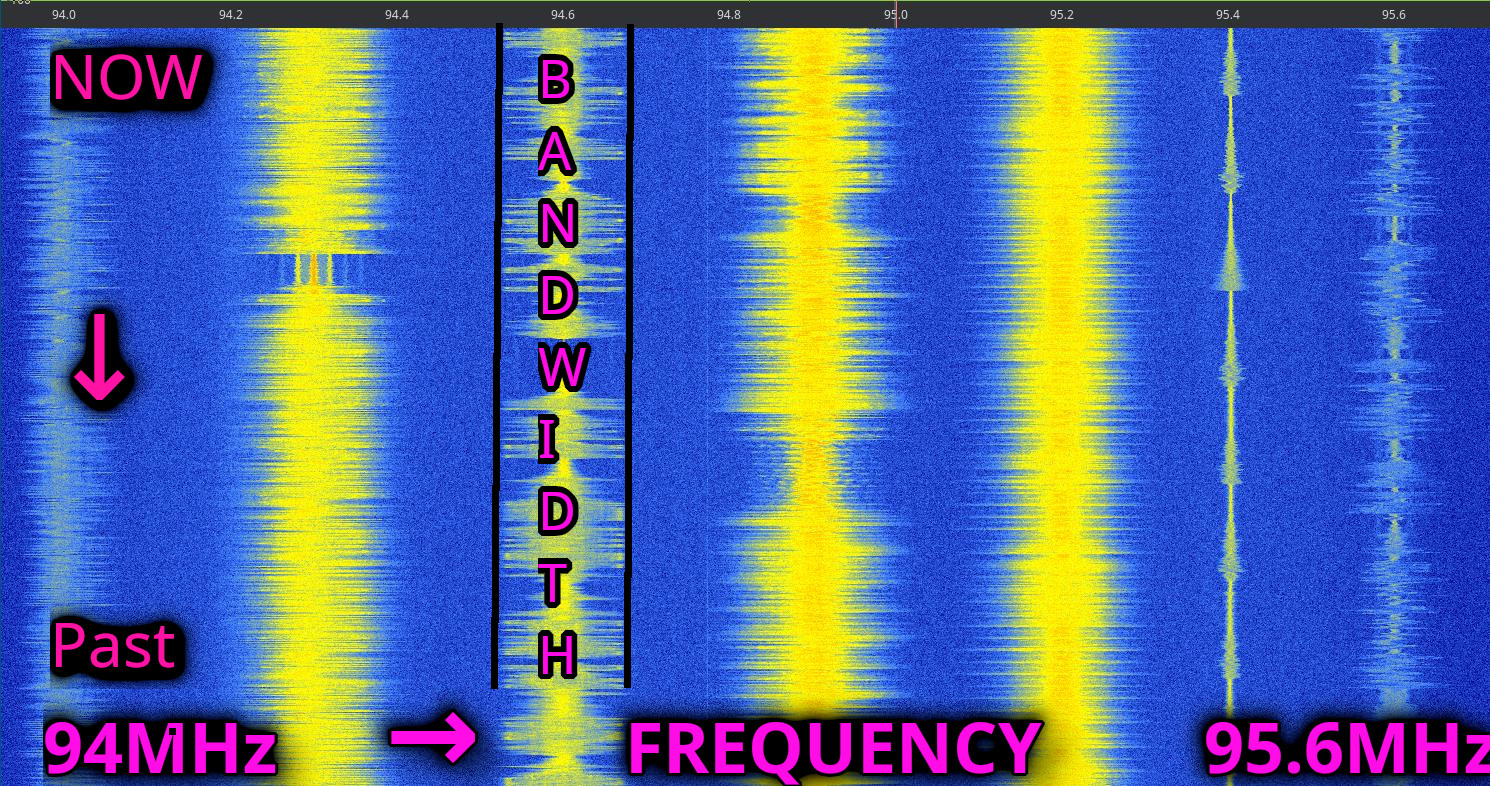

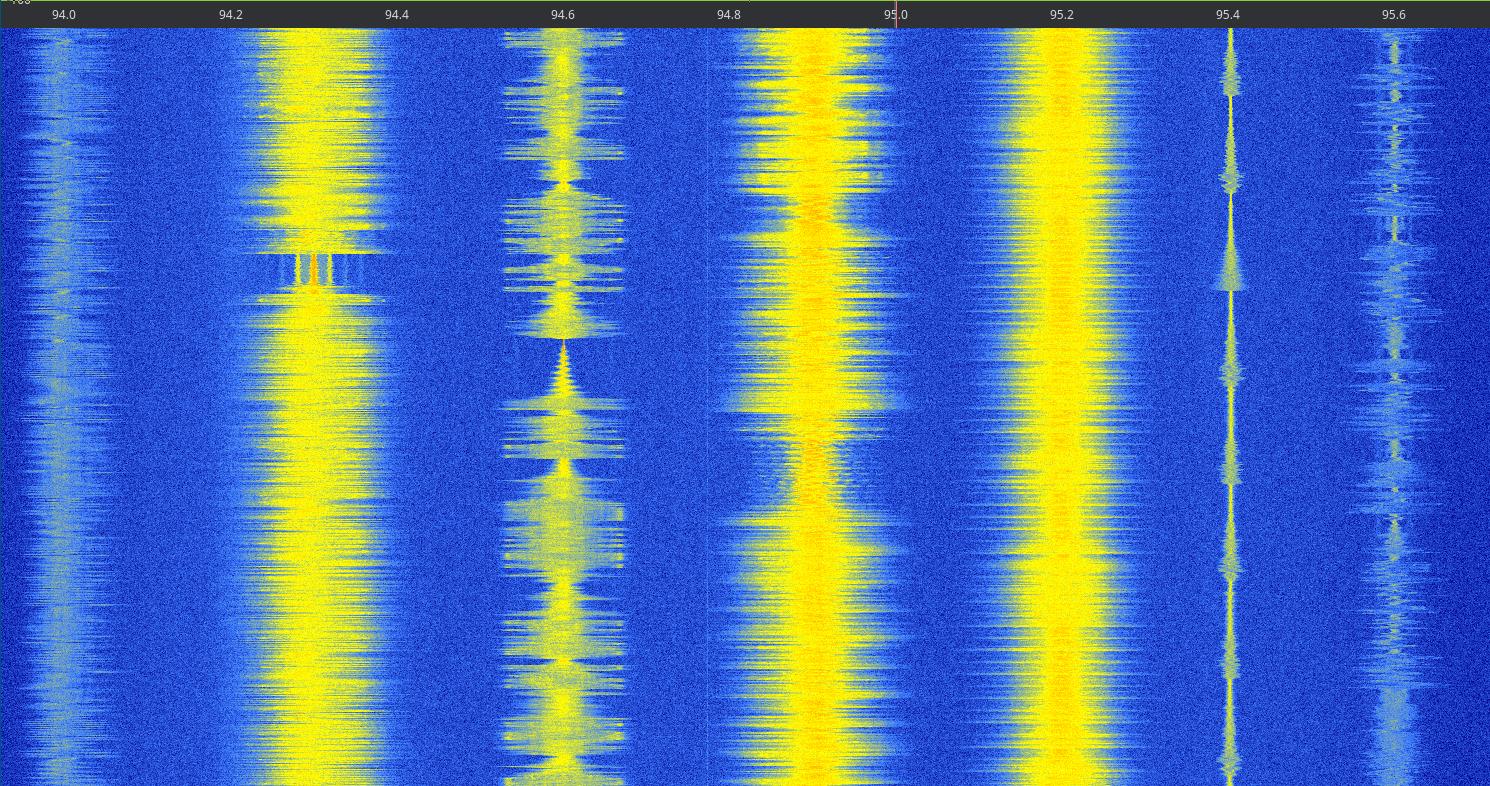

Spectrogram

Visualization of spectrum of frequencies over time

Spectrogram

Spectrogram

Spectrogram

What happens if these two signals overlap?
